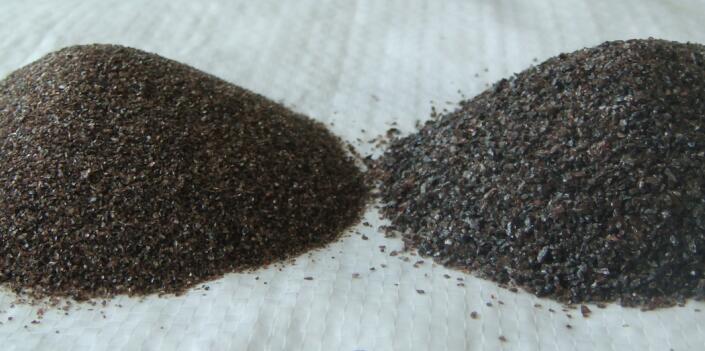

Brown corundum is bauxite, coke (anthracite) in raw materials, melting in electric arc furnace at high temperature. The main chemical compositions are Al2O3, TiO2 and a little SiO2, Fe2O3 and so on. Its hardness is HV1800-2200 and it’s tougher than Sic. The abrasive made from it is suitable for high tensile strength metal, such as a variety of common steel, malleable iron and hard bronze. It also can be used as advanced refractory.
▼Usage:
Ceramic resin abrasive, sand blasting, grinding and polishing, and widely used in non-slip wear runway into a high-temperature basic plating, metallurgical and chemical industries of advanced refractory ,the idea martial for sandblasting, cleaning parts, polishing and so on.
MACRO GRITS |
MICRO GRITS |
||
Grit Size |
Mean Diameter in µm |
Grit Size |
Mean Diameter in µm |
F 8 |
2460 |
F 220 |
53.0 ± 3 |
F 10 |
2085 |
F 280 |
36.5 ± 1.5 |
F 12 |
1765 |
F 320 |
29.2 ± 1.5 |
F 14 |
1470 |
F 360 |
22.8 ± 1.5 |
F 16 |
1230 |
F 400 |
17.3 ± 1 |
F 20 |
1040 |
F 500 |
12.8 ± 1 |
F 22 |
885 |
F 600 |
9.3 ± 1 |
F 24 |
745 |
F 800 |
6.5 ± 1 |
F 30 |
625 |
F 1000 |
4.5 ± 0.8 |
F 36 |
525 |
F 1200 |
3.0 ± 0.5 |
F 40 |
438 |
F 1500 |
2.0 ± 0.4 |
F 46 |
370 |
F 2000 |
1.2 ± 0.3 |
F 54 |
310 |
||
F 60 |
260 |
||
F 70 |
218 |
||
F 80 |
185 |
||
F 90 |
154 |
||
F 100 |
129 |
||
F 120 |
109 |
||
F 150 |
82 |
▼Chemical Analysis
Purpose |
Specifications |
Chemical Composition (%) |
Magnetic Material Content (%) |
||||
For Abrasives |
Al2O3 |
Fe2O3 |
SiO2 |
TiO2 |
|||
F |
6-80 |
≥95.0 |
≤0.30 |
≤1.50 |
≤3.0 |
≤0.05 |
|
90-150 |
≥94.5 |
≤0.30 |
≤1.50 |
≤3.0 |
≤0.03 |
||
180-220 |
≥94.0 |
≤0.30 |
≤1.50 |
≤3.5 |
≤0.02 |
||
240-1200 |
≥93.5 |
≤0.50 |
≤1.80 |
≤4.0 |
— |
||
Refractory |
Section Sand |
0-1mm 1-3mm 3-5mm 5-8mm 8-10mm 10-16mm |
≥95.0 |
≤0.30 |
≤1.50 |
≤3.0 |
— |
Fine Powder |
-180mesh -220mesh -240mesh -320mesh |
≥93.5 |
≤0.50 |
≤1.50 |
≤3.5 |
— |
▼Physical properties
Color |
Brown |
Crystal shape |
α-Al2O3 Trigonal |
Hardness(mohs) |
≥9.0 |
Micro Hardness |
HV1800-2200 |
Melting Point (℃) |
2050 |
True Density (g/cm3) |
≥3. 90 |
Bulk Density(g/cm3) |
1.68-1.95 |
Linear Expansion Coefficient(0—1600℃) |
7.6 |
All data based upon Runlong Enterprise standard test methods. We could supply grit size according to FEPA, JIS, ANSI, GB & P Standard.
Good quality abrasive material brown corundum with unit price[USD580~700/Ton FOB Tianjin] from China corundum factory.

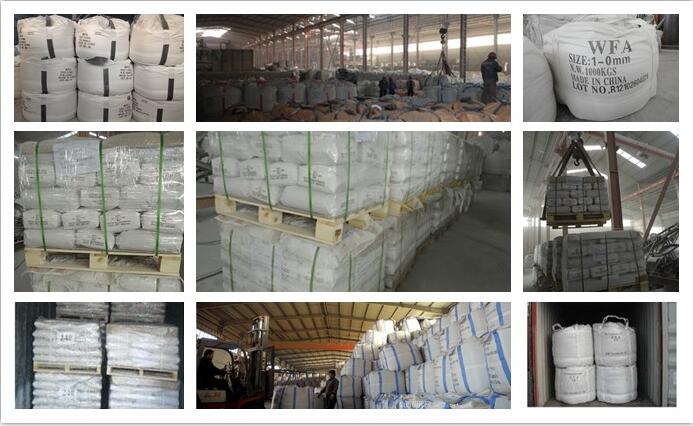

Packing:
Jumbo Bag of 1 Ton, 1.2 Tons or 1.3 Tons
25kg Woven Plastic Bag, 40 Bags in a jumbo Bag
25kg Woven Plastic Bags, 40 Bags on a Wood Pallet
25kg Paper Bag, 40 Bags on a Wood Pallet
Other package also could suppy as request.
