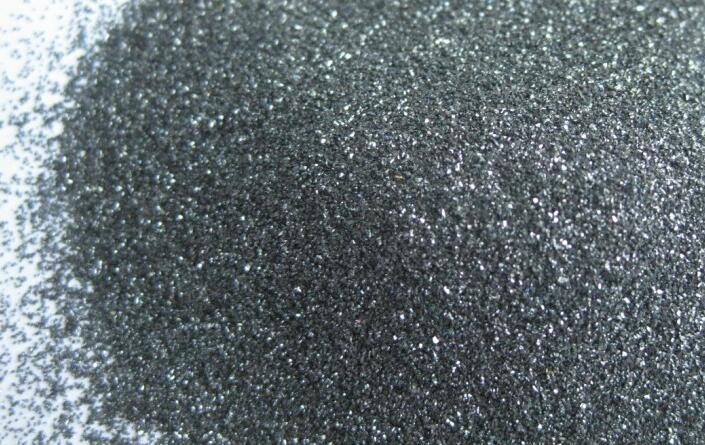

Black carborundum also called black silicon carbide. This product, chemical formula of which is SiC, is obtained from the synthesis of high purity quarts sand and petroleum coke as basic raw materials under high temperature in an electric resistance furnace. It contains 85-99% of SiC and the admixtures of Fe2O3, Al2O3, CaO, SiO2, MnO2.
It is characterized by great hardness (9,2 in Mohs scale) and micro hardness (circa 2940- 3320 kG/mm2). Its specific gravity (density) of hexagonal type, which is affected by the degree of impurity, comes to 3,20+/-0,05 g/cm3. Bulk density equals 1,20 – 1,60g/cm3. Good thermal conductivity, low thermal expansion (decreasing with temperature growth) and high strength are another characteristics that ensure a wide use of the material. Electrically it is a semiconductor. Compared with green silicon carbide, the purity, hardness and brittleness of black SiC are lower
▼Usage
● As the abrasive: used for abrasive, such as grinding wheels, whetstone, grinding wheel, sand tiles etc.
● As the metallurgical deoxidizer and high temperature material.
● High purity single crystal, used to manufacture semiconductors, manufacture of silicon carbide fibers.
● Silicon carbide is very hard, with excellent thermal conductivity, as a semiconductor and high temperature resistant to oxidation.
Four main application areas of silicon carbide: functional ceramics, advanced refractory, abrasives and metallurgical materials.
▼Chemical Analysis & Physical Properties
Purpose |
Specification |
Chemical |
Magnetic |
|||
Abrasives |
SIC |
F.C |
Fe2O3 |
|||
F |
12-80 |
98 |
0.20 |
0.6 |
0.0023 |
|
90-150 |
97 |
0.30 |
0.8 |
0.0021 |
||
180-220 |
96.5 |
0.30 |
1.2 |
0.0018 |
||
240-1200 |
96 |
0.35 |
1.35 |
— |
||
Refractory |
Section |
0-1mm 1-3mm 3-5mm 5-8mm |
97 |
0.35 |
1.35 |
— |
Fine |
-180mesh -200mesh -240mesh -320mesh |
97 |
0.35 |
1.35 |
— |
|
color |
Black |
|||||
Hardness(mohs) |
9.2 |
|||||
Micro hardness(kg/mm2) |
2940-3320 |
|||||
Melting |
2600 |
|||||
Maximum |
1900 |
|||||
True |
3.20-3.25 |
|||||
Bulk density(g/cm3) |
≥1.38 |
|||||
High thermal |
100 |
|||||
Linear expansion coefficient (at 900℃ α·10-6K-1) |
4.4 |
All data based upon Runlong Enterprise standard test methods. We could supply grit size according to FEPA, JIS, ANSI, GB & P Standard.
High SiC purity black carborundum for surface cleaning with unit price [USD1000~1350/Ton FOB Tianjin] from China silicon carbide manufacturer.
▼Other grade 75%, 85%, 90% purity black silicon carbide also could be supplied.

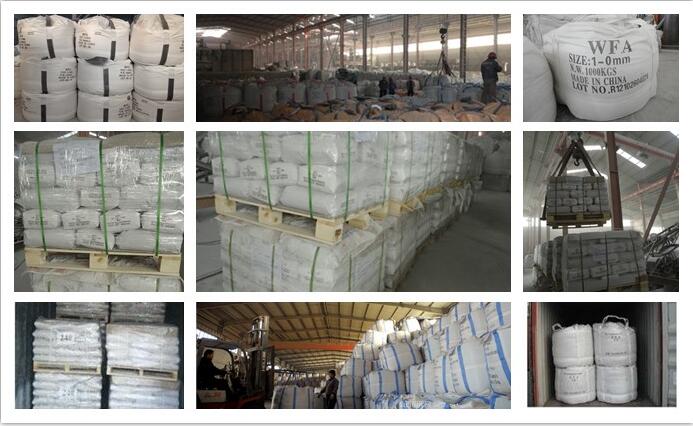

Packing:
Jumbo Bag of 1 Ton, 1.2 Tons or 1.3 Tons
25kg Woven Plastic Bag, 40 Bags in a jumbo Bag
25kg Woven Plastic Bags, 40 Bags on a Wood Pallet
25kg Paper Bag, 40 Bags on a Wood Pallet
Other package also could supply as request.
